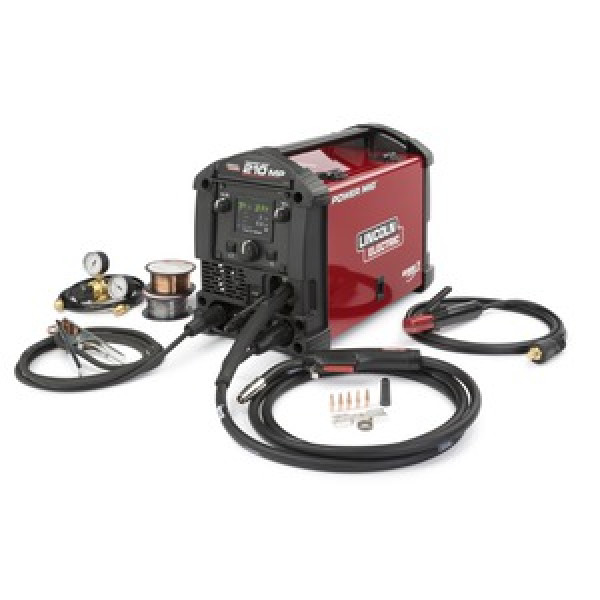

POWER MIG® 210 MP® MULTI-PROCESS WELDER

Top Features

  • Lightweight and portable–just 40 lbs.
  • Dual Voltage Inputs (120V or 230V) means you can plug into any common power supply
  • Intuitive push-and-turn digital controls make setup a breeze
  • Large color display guides you through the setup process
  • Advanced options and settings are simple to access

Input Power

  • 115/230/1/60

Processes

MIG, Flux-Cored, DC Stick, DC TIG

Description

VERSATILE, RUGGED, SIMPLE TO USE.

The POWER MIG® 210 MP®® 210 MP® power supply is the ideal MIG machine for the welding novice, with plenty of room to grow as you gain more experience.

ONE POWERFUL MACHINE

Take it Everywhere, Plug in Anywhere.™

  • Lightweight and portable – just 40 lbs.!
  • Dual Voltage Inputs (120V or 230V) means you can plug into any common power supply

Ready. Set. Weld®.

  • Intuitive push-and-turn digital controls make setup a breeze
  • Large color display guides you through the setup process
  • Advanced options and settings are simple to access

210 Amps: The power to tackle any job

  • MIG: Weld up to 5/16 in. mild or stainless steel or aluminum* up to 3/16 in.
  • Flux-Cored (Self- and Gas-shielded): Tackle the biggest jobs
  • DC Stick: Handles up to 5/32 in. stick electrodes
  • DC TIG: Enabled by Touch Start TIG® technology

*Spool gun required (sold separately)

INPUT POWER
  • 115/230/1/60
RATED OUTPUT
  • 120V: 100A/19.0/40%
  • 230V: 200A/24V/25%
INPUT CURRENT
  • 15A
  • 14.7A
OUTPUT RANGE
  • 120V: 20-140 Amps DC, Max. OCV : 56
  • 230V: 20-220 Amps DC, Max. OCV : 56
SOLID WIRE SIZE RANGE
  • .025 – .035 in (0.6 – 0.9 mm)
CORED WIRE SIZE RANGE
  • .035 – .045 in (0.9 – 1.2 mm)
WIRE FEED SPEED RANGE
  • 50-500 ipm (1.3-12.7 m/min)
DIMENSIONS (H X W X D) 14 in x 10.75 in x 19 in (356 mm x 273 mm x 483 mm)
SKU: K3963-1 Categories: ,
